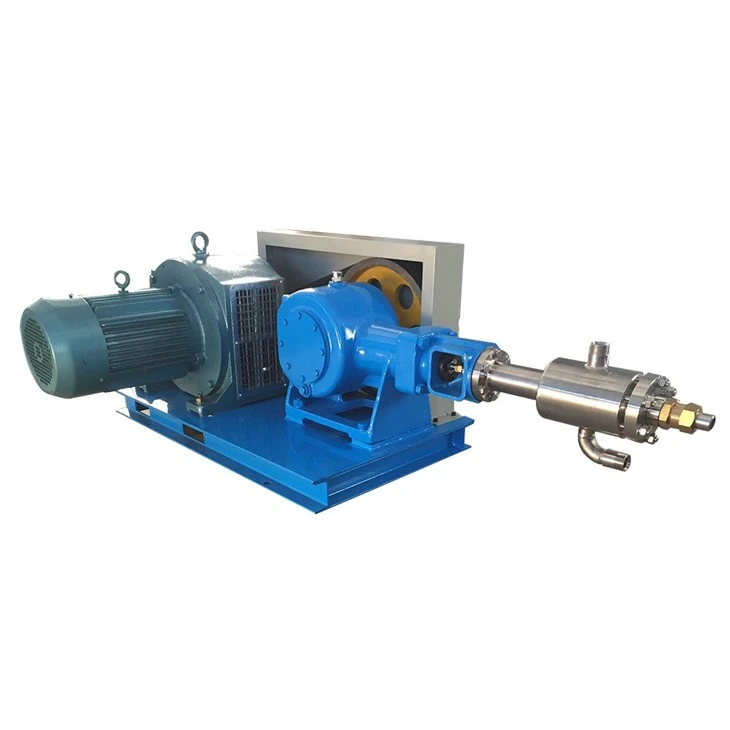

High Flow Liquid CO2 Cylinder Filling Pump for Bulk Gas Plants
Products Description
Our liquid co2 pump optimizes flow channel based on cryogenic fluid mechanics to reduce medium vaporization risk. Separated design between power end and cryogenic medium end prevents cold transfer damage to motor and transmission parts. Medium wetted parts adopt 304 /316L stainless steel with excellent low temperature and corrosion resistance. Single unit or multiple parallel installation is available to meet large flow continuous transfer requirement according to working conditions. Pump head can withstand -40℃ cryogenic working condition with wide output pressure range, serving as core fluid equipment for liquid carbon dioxide transfer and pressurization.
Technical Parameters
| Transmission medium | Liquid carbon Dioxide |
| Product type | Horizontal,Single Cylinder,Piston |
| Flow range(L/H) | 100-1500 |
| Inlet pressure(Mpa) | 1.38-2.4 |
| Maximum outlet pressure(Mpa) | 16.5 |
| Input power | 380V,3Phase,50Hz |
Product Features
✅ Economical cryogenic plunger structure, fewer consumable parts and low maintenance cost
✅ Anti-cavitation pump head to reduce shutdown caused by CO₂ vaporization
✅ Stainless steel wetted parts with low temperature & corrosion resistance
✅ Modular disassembly design, easy maintenance, spare parts low cost & easy to get
✅ Optional VFD to adjust flow and pressure on demand
✅ Optional explosion-proof motor to meet plant safety standard
✅ Pressure test before delivery, stable quality
More Details about carbon dioxide pump
Application Fields
▪Small & medium dry ice manufacturing plant
▪Small carbonated beverage production line
▪CO₂ cylinder filling station ▪Small chemical CO₂ recovery system
▪Lab CO₂ pressurization test
▪CO₂ fire tank filling project
Packing & Shipment
Pump anti-rust treatment, wrapped by PE film, fixed in fumigated solid wood export case with shockproof foam. Accessories and manual packed in waterproof bag. Reinforced wooden case suitable for long sea transportation. Shipping mark customized as requested. Full container & LCL shipment available.
How to Select liquid co2 pump?
1.Provide medium temperature, inlet & outlet pressure.
2.Provide required hourly flow rate.
3.Confirm operation hours (intermittent / continuous).
4.Confirm explosion-proof or VFD requirement.
5.Site installation space.
6.Whether auxiliary accessories needed.
Send us working condition, we will quote quickly and recommend suitable co2 pump model.
Common Troubles & Solutions about co2 pump
| Trouble | Reason | Solution |
|---|---|---|
| No liquid output | Insufficient inlet pressure, CO₂ vaporization gas blockage |
Increase the static pressure of the storage tank, check the cold insulation of the inlet pipeline, and check the inlet temperature |
| Low flow rate | The inlet and outlet valves are clogged and the seals are leaking. |
Check the valve core and replace the aging seals |
| High noise | Cavitation, loose fixed base |
Optimize entrance anti-cavitation and tighten base bolts |
| Pump frequent shutdown | Overload, pressure protection triggered |
Check the outlet pipeline for blockage and pressure setting value |
| Seal leakage | Seal aging, medium containing impurities |
Replace cryogenic seal, inlet filter |
Company Profile
Chongqing Hetai Yijia Intelligent Equipment Co., Ltd.
Established in 2002, HTYJ is an ASME/CE/ISO certified professional manufacturer of LNG marine fuel storage tank, air separation unit, Co2 Recovery Plant, ISO tank container, LPG electric heating vaporizer, liquid nitrogen quick-freezing machine, LPG storage tank, and other cryogenic gas tanks of oxygen, nitrogen, argon and carbon dioxide.We have 4 factories and over 600+ employees, covers an area over 69, 000 m2 with capability of manufacturing over 2, 000 products every year.
Professional team
100+ Technical staff and after-sales personnel
Senior project managers effectively control all aspects of the project
7x24 hours delivery
Exporting to more than 70 cities around the world; with 24/7 delivery capabilities, it is a global partner for enterprises
6000+
Factory area
24+
years experience
600+
employees
100+
professional and technical service personnel
Customer Visit
Domestic and overseas customers are warmly welcome to visit our factory. We can arrange workshop tour, prototype test demonstration and technical meeting. Please make appointment in advance. Our professional technical & sales team will receive you. You can watch liquid co2 pump assembly process and cryogenic performance test on site, discuss customized project solution face to face.
FAQ
Q: Is this liquid co2 pump suitable for dry ice machine?
A: Yes, our co2 booster pump is widely used for dry ice pellet & block production line.
Q: Can you make customized co2 pump?
A: Yes, customized parameters and accessories available.
Q: What is warranty period?
A: 12 months warranty, consumable parts excluded.
Q: Do you supply spare parts for cryogenic co2 pump?
A: Yes, seal, plunger, valve core available.
Q: Can you make explosion-proof co2 pump?
A: Yes, explosion-proof motor optional.
Q: Can we buy only spare parts instead of whole pump?
A: Yes, we sell spare parts separately.
