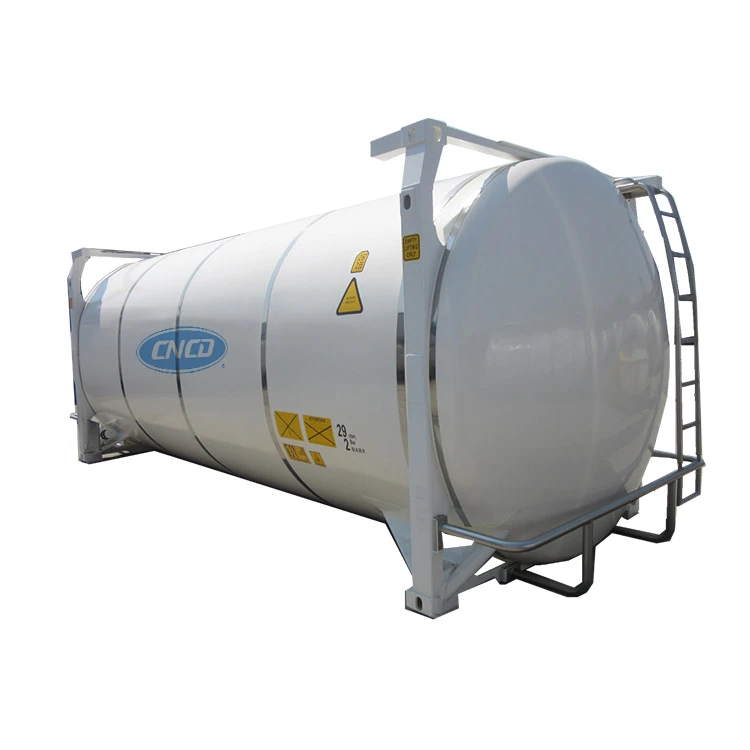

20ft ISO Tank Containers for Beer (Draft Beer/Unpasteurized Beer)
Products Description
UN T11 pressure-resistant food-grade ISO tank containers, specifically designed for bulk transport of draft beer and unpasteurized beer; pressure-resistant tank body with light-proof structure to prevent light odor; equipped with a CO₂ back pressure interface to completely isolate oxygen and protect beer flavor; supports sea freight, China-Europe freight train, and cross-border land transport; complete CIP cleaning system; customizable for single or multi-compartment containers.
Products parameter
|
Project |
Parameters |
|
External Frame Dimensions |
6058×2438×2591mm, standard 20ft ISO container with ISO corner fittings |
|
Effective Volume |
24-26 m³ |
|
Inner Tank Material |
Standard configuration: SUS316L (resistant to organic acid corrosion from beer) |
|
Inner Wall Polishing |
Mirror polishing Ra ≤0.8μm, corner radius R≥25mm |
|
Insulation Layer |
Polyurethane foam, 70-100mm thick, light-proof structure, stored at 2-8℃. |
|
Design Pressure |
4 bar; hydrostatic test pressure 6 bar |
|
Standard Accessories |
Pressure-resistant sanitary manhole, CO₂ back pressure inlet, safety valve + rupture disc, CIP cleaning ball, food-grade EPDM gasket, pressure gauge |
|
Optional Configurations |
Onboard refrigeration unit, multiple compartments, temperature recording module |
|
Certificates |
IMDG-T11,CSC,CCS,BV,CE,ADR/RID |
|
Maximum Gross Weight |
36000kg, Approx. 3950 4100kg (Task Weight) |
Product Features
1.Food-grade stainless steel tank with mirror internal polishing, no sanitary dead corners. Customers can perform easy CIP cleaning to avoid residue contamination and keep consistent beer flavor.
2.Thickened insulation layer with temperature control jacket maintains low temperature for long hours. Preserve draft beer freshness during long sea transport and reduce beer loss rate.
3.Airtight oxygen-free structure blocks air ingress, prevents beer oxidation and extends beer shelf life during storage.
4.Optional ports: top / bottom loading, vent and sampling port. Seamlessly connect with filling and discharging lines to improve beer transfer efficiency.
5.Optional ports: top / bottom loading, vent and sampling port. Seamlessly connect with filling and discharging lines to improve beer transfer efficiency.
6.Integrated safety valve and pressure monitoring device to track internal pressure, lower safety risks and prevent leakage.
7.Anti-corrosion inner material resistant to weak acid from beer, longer tank service life and cut long-term equipment replacement cost.
Application Scenarios
✅ Long-distance draft beer distribution for craft breweries
✅ Large volume liquid beer sea export for beer brands
✅ Intermediate storage for big breweries, serve as temporary beer storage tank
✅ Multi-modal transport for beer traders on cross-border import & export of liquid beer
✅ Temporary beer storage & supply for beer exhibitions and large events
FAQ
Q: Is this tank suitable for draft beer?
A: Yes, specially designed for draft & craft beer.
Q: What material for 20ft iso beer tank container inner wall?
A: SS304 standard, SS316L optional.
Q: What is 20ft stainless steel beer tank container volume?
A: 24000L or 25000L optional.
Q: Does the 20 foot beer ISO tank container have insulation layer?
A: Yes, PU/PIR thermal insulation included.
Q: Can we do CIP cleaning on this 20ft beer tank container?
A: Yes, fully CIP compatible.
Q: Can we customize loading ports?
A: Yes, top /bottom loading optional.
Q: What is lead time?
A: Normally 45–60 working days.
