Product Overview

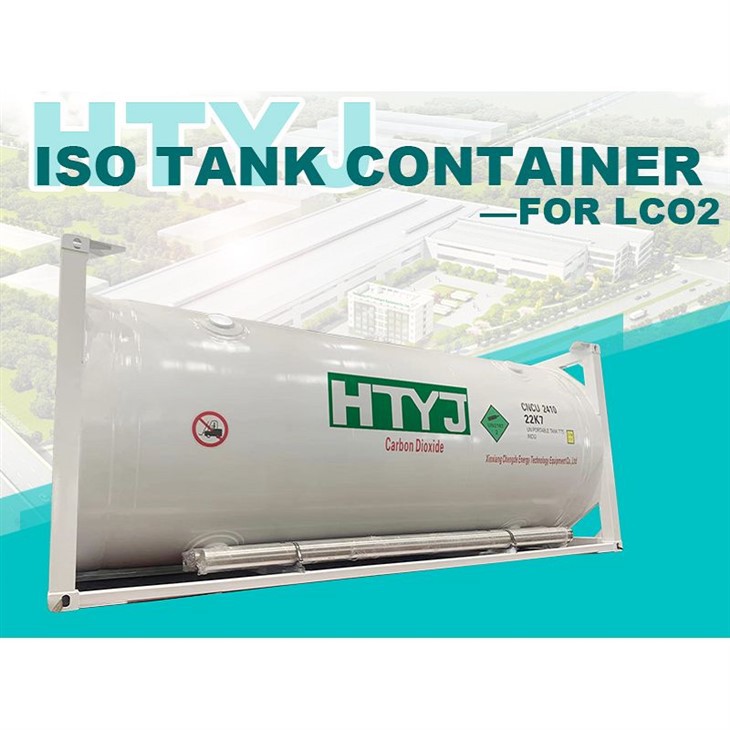

Our company's 20ft Liquid Co2 Iso Tank Container is developed and produced in strict accordance with international standards. It is specially designed for the safe storage and multimodal transport of liquid carbon dioxide (LCO ₂), taking into account safety, economy and environmental protection, and adapts to global chemical and energy industries. It can directly connect with international shipping, land transportation, and railway transportation systems, providing customers with efficient, low-cost, and reliable liquid carbon dioxide storage and transportation integrated solutions
Parameter
|
Parameter Name |
Specific Specifications |
|
Container Size |
20ft(20ft Iso Tank) |
|
External Dimensions |
6058mm×2438mm×2591mm |
|
Effective Volume |
22000l (Regular Model),Customizable |
|
Working Pressure |
22bar (Standard Model), Customizable Adaptation Pressure |
|
Design Temperature |
-40℃~+60℃ |
|
Tank Material |
Inner Container 316 Stainless Steel, Outer Container Q345R Carbon Steel |
|
Insulation Method |
High-Vacuum Multilayer Super Insulation |
|
Tare Weight |
9750kg |
|
Max Gross Weight |
22250kg |
|
Certification Standard |
Asme ⅷ,Ccs,Bv,Lr |
Product Features
1. Adopt a high-vacuum multi-layer super thermal insulation structure, which can effectively isolate internal and external temperature exchanges, ensure long-term stable storage of liquid carbon dioxide, and the lossless storage time exceeds 90 days, greatly reducing medium loss and reducing customer operating costs;
2. The 20 ton liquid co2 iso tank body is equipped with dual safety pressure relief valves and pressure monitoring instruments to monitor the pressure changes in the tank in real time, automatically relieve pressure to prevent overpressure, and eliminate potential safety hazards such as leakage and explosion from the source;
3. The liner is made of 316 stainless steel, which is resistant to liquid carbon dioxide corrosion and low temperature. The shell is made of high-strength Q345R carbon steel, which is compressive and impact-resistant, and is suitable for various complex road conditions in long-distance transportation, so that customers do not need to worry about storage and transportation. Safety issues, compliance and worry-free, fully meet the requirements of international dangerous goods transportation specifications.
Strictly follow the 20ft international standard size design, the external frame is completely consistent with the standard container, and can be directly adapted to various transportation methods such as sea, road, and railway, realizing seamless connection of multimodal transport without secondary transshipment, greatly improving transportation efficiency, and truly Realize "door-to-door" transportation
1.According to the actual needs of customers, products with different effective volumes (14000-26000L) and working pressures can be customized. At the same time, optional configurations such as pressure monitoring systems and inert gas protection devices are provided to adapt to the storage and transportation of liquid carbon dioxide with different purity such as food grade and industrial grade. need;
2.Optimize the tank structure design, lighter self-weight, larger loading capacity, taking into account practicality and economy, whether it is a small laboratory, food processing plant, or a large chemical enterprise, energy base, you can find suitable solutions to meet Customers' personalized and diversified use needs.
1. The liner is made of 316 stainless steel, which is corrosion-resistant and low temperature-resistant. The shell has been treated with sandblasting, rust removal and anti-corrosion painting, which can effectively resist the erosion of marine salt spray and industrial dust, and adapt to different harsh environments. The service life can reach more than 15 years (far exceeding the average level of the industry);
2.The equipment structure is simple and the failure rate is low. Daily maintenance only needs to check the pressure instrument and pressure relief valve regularly. The operation is simple and convenient, and there is no need for professional and technical personnel. It greatly reduces the maintenance cost and downtime loss of customers, improves the utilization rate of equipment, and creates long-term value for customers.
Our company

Chongqing HTYJ Intelligent Equipment Co., Ltd.. mainly produces lco2 iso tank container,simi trailer tank,lpg tank,microbulk tank,ambient vaporizer, Liquid Nitrogen Quick-Freezing equipment,Cryogenic dewar,PSA oxygen generators, air separation equipment, gas purification equipment; carbon dioxide capture and recovery equipment, Lng Marine Fuel Storage Tank etc

We have the most advanced automatic digital cutting equipment, automatic welding equipment, 360-degree shot blasting equipment, constant temperature drying equipment, etc. Each equipment will go through a full range of X-ray detection to ensure product quality

Our products have passed the certification of many inspection institutions at home and abroad, including ISO9001 international quality system certification, ASME, CE, CCS, BV, AAS and other certifications
Why choose us?
Production Base
The Company Has a Modern Production Base Covering An Area Of Over 69,000 Square Meters, Equipped With Advanced Production Lines For Tank Boxes, Covering The Entire Production Process Of Tank Forming, Welding, Thermal Insulation, Assembly, Quality Inspection, Etc., To Achieve Large-Scale And Standardized Production, Can Quickly Respond To Customers' Demand For Large-Scale And Customized Orders, With An Annual Production Capacity Of 2,000 Sets, And Production Efficiency And Product Quality Are At The Leading Level In The Industry
Production Equipment
Introduce International Advanced Production Equipment And Testing Equipment, Including Cnc Cutting Machines, Automatic Welding Machines, Vacuum Insulation Equipment, Pressure Testing Equipment, Air Tightness Testing Equipment, Etc. The Equipment Has High Precision And Stable Performance To Ensure The Accuracy Of The Production Process Control And Product Quality Consistency, While Improving Production Efficiency And Shortening Delivery Cycle;
Production Team
It Has a Production Team Composed Of More Than 20 Senior Engineers And More Than 50 Professional And Technical Personnel. The Team Members Have An Average Of More Than 10 Years Of Tank Container Production Experience, Are Familiar With International Standards And Customer Needs, And Can Accurately Control Every Production Link Of The Product Ensures That The Product Quality Meets The Standard, And At The Same Time Can Quickly Respond To Customer Customization Needs And Provide Professional Technical Support;
Quality Inspection System
Establish a Full-Process Quality Inspection System From Raw Material Procurement To Finished Product Delivery, Set Up a Special Quality Inspection Department, Equip Professional Quality Inspection Personnel And Advanced Testing Equipment, Raw Materials Can Only Be Put Into Storage After Passing The Third-Party Inspection, Each Process In The Production Process Has a Special Person For Quality Inspection, And The Finished Product Is Put Out Of The Warehouse For Pressure Testing, Air Tightness Testing, Appearance Testing And Other Tests. Unqualified Products Are Resolutely Not Left The Factory, And The Product Pass Rate Is Over 99.8%.
Customer Visits
Customers from many countries have come to our company for field visits, and they are very satisfied with the strength of our factory, professional technology and enthusiastic service

FAQ
Q: How long is the service life of the Lco2 Tank Container? Is routine maintenance complicated?
A: Under the condition of normal use and regular maintenance, the service life of the product can reach more than 15 years, far exceeding the average level of the industry (10-12 years). Daily maintenance is very simple, no professional and technical personnel are required, only regular (every 3 months) inspection of the operating status of the pressure instrument and pressure relief valve, annual air tightness test and pressure test, clean up the dust and sundries on the surface of the tank can; The key components are selected from internationally renowned brands, and the failure rate is low. If there is a minor failure, we will provide remote technical guidance to assist customers to solve it quickly, greatly reducing maintenance costs and downtime losses
Q: Can we customize product specifications according to our needs? How long does the customization cycle take?
A: Yes. We support all-round customization. We can customize products with different effective volumes (14000-26000L) and working pressures according to customer needs. At the same time, we can customize optional configurations such as PBU, pressure monitoring system, and heating device to adapt to different industries and scenarios. Individual needs. The customization cycle depends on the order specification and quantity. Regular customization orders (1-10 units) will be delivered within 30-45 working days. Mass customization orders (more than 10 units) can be negotiated to shorten the cycle. We will follow up the customization progress throughout the process to ensure Delivery on time without delaying customer production and use
Q: What should I do if the product is damaged or leaked during transportation?
A: We bear the risk of damage, loss and leakage during the whole process of cargo transportation (the transportation agreement must be signed in advance). Before transportation, we will carry out strict packaging and testing of products to ensure that the equipment is in good condition; During the transportation process, special personnel are arranged to track the transportation progress and GPS positioning throughout the process to avoid illegal operations. If after the goods are delivered, the customer finds that the equipment is damaged, leaked or the parts are missing, he needs to take pictures and videos on the spot to retain evidence, and give feedback to us as soon as possible. We will provide a solution within 24 hours to replace the damaged parts, Repair equipment, or reissue new products, to ensure that the rights and interests of customers are not lost, and the customer does not need to bear any additional costs
Q: After the iso tank co2 is delivered, do you provide installation and commissioning services?
A: Provide. After the product is delivered, we will provide detailed installation and commissioning instructions, and arrange professional engineers to provide remote technical guidance to assist customers in completing installation and commissioning to ensure the normal operation of the equipment; If the customer has on-site installation and commissioning needs, we can arrange engineers to go to the customer's site (globally available) to provide one-to-one on-site services. The installation and commissioning costs can be negotiated (free on-site services can be provided for bulk purchases), and at the same time, the customer's Operators conduct simple training, explain equipment use and maintenance skills, and help customers get started quickly
Q: What is your MOQ? How long is the lead time for a regular order?
A: Our minimum MOQ is 1 set, which supports small batch purchases and is convenient for customers to try and test; Regular orders (standard specifications, no customization requirements) are delivered within 30-45 working days, customized orders are delivered within 60-70 working days, and large-scale orders (more than 10 units) can be negotiated to shorten the delivery cycle. We will arrange production reasonably to ensure On-time delivery, without delaying the customer's use plan, the delivery cycle is shortened by 20% compared with the average level of peers
